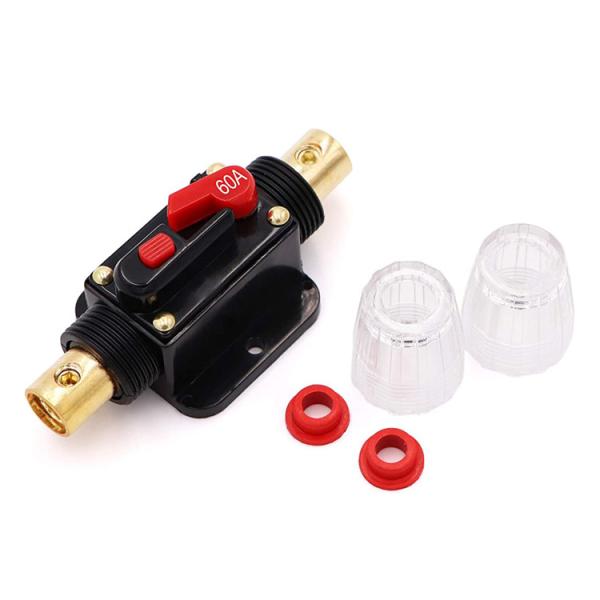

24V 60A Inline Circuit Breakers Manual Reset Fuse Holder 60 Amp/ Circuit Breakers For Car Audio System

Model Number : CB-01-060

Place of Origin : China

MOQ : 100

Price : USD $3.5~$5 per piece

Payment Terms : T/T

Supply Ability : 1K pieces per week

Delivery Time : 10 work days

Packaging Details : 20pcs per box, 100pcs per carton

Item Name : Inline Car Circuit Breaker

Part No. : CB-01-060

Dimension : 98*43*35 mm

Mounting Type : Panel Mount

House material : ABS

Terminal material : zinc alloy

Voltage Rating : 12V 24V

Current Ratin0.1A~20Ag : 60A

RoHS Compliant : Yes

Halogen free : Yes

Net weight : 81g

MPQ : 20 PCS

MOQ : 100 PCS

Contact Now

60A Audio Inline Circuit Breaker Auto Manual Reset Fuse Holder 60 Amp for Car Audio Stereo Switch Solar Inverter System
Description
Protect the safety of automotive electronics.
Prevent car currents from being too high and damage automotive electronic equipment.

Item Name	Circuit Breaker for car audio
Type	Auto and manual disconnect, manual reset
Volts	12V 24V
Current	60A 60Amps
Body Material	ABS
Protection Grade	IP67
Wire Gauge	1~15 AWG
Working Temperature	-10C to 50C
Compliance	SAE J1625; ABYC E-11; CE; SAE J1171

Product Specification:

1. Material: ABS and zinc alloy

2. Size(inch): 3.85 (L) x 1.69 (W) x 1.37 (H)

3. Rated Voltage: 12-24V DC

4. Net weight: 80g

5. Suitable gauge: 1-15 AWG

6. Working Temperature: -10C to 50C (-14F to 122F).

7. Ampere range: 20A 30A 40A 50A 60A 80A 100A 125A150A

Features:

Manual disconnection, circuit push button.

Self Testing & Manual Override.

Reset type: Manual Reset - Switchable

Easy to operate with manual reset handle.

No fuse change trouble.

Can be mounted on panel or firewall.

Application:

Suitable for car audio/video system, Boat, trucks, buses, RV's, ATV Winches and marine and DC sound amplifier system overload protection

60 Amp Circuit Breaker Overload Protection Switch 60A

24V 60A Inline Circuit Breakers Manual Reset Fuse Holder 60 Amp/ Circuit Breakers For Car Audio System
Buttom Explanation

Structure

Drawing

Wire gauge specification

Standard Package

20pcs per box, 100pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Warmly Reminder:

1. Please use it under right work temperature, to avoid it is too heat and stop work.

2. Please correctly push the button to avoid damage the Circuit Breaker.

Company warehouse
About Us
Reomax Electronics Co., Ltd was founded in 1999, focused on manufacturing electronic protection components for over-current, over-temperature and other circuit protection. Reomax products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies, vehicles and marine applications.

FAQ

Q1:What’s your main products?
A1:fuses, fuse holders, thermal switches, circuit breakers
Q2:What’s your delivery time?
A2: It depends on your qty. Most of the items are available between 5-15 days. OEM items need longer time.
Q3:How can I get a sample? Is that for free?
A3:You are always welcome for requesting samples. Most of the samples are free of charge. But you will have to bear the express cost.
Q4:How can I get a more competitive price?
A4:Usually our quotation is made based on the order qty. You need to increase your qty if you demands lower prices.We can't sacriface the quality for lower pricing and profit.
Q5:How do you control your quality system?
A5: We have enough number of QC staff at every stage from adopting materials, productionion, packing to
loading, They are on for 7/24.
Q6:How long is your warranty period?
A6: Normally you will have 1-year warranty for most of our products.
